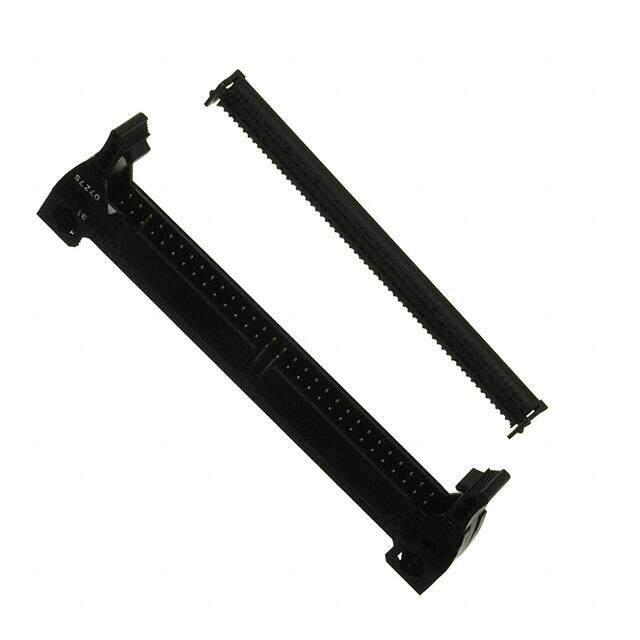

XG4E-6071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings LongLock Plug 60Pin OpenCover 2Polarized
PDF
/
Buying Options
Total Price: USD $23.59
Unit Price: USD $23.587561
≥1 USD $23.587561
≥210 USD $9.41218
≥510 USD $9.097084
≥990 USD $8.942162
Inventory: 1078
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 5.90μin 0.150μm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Type Ribbon
Max Current Rating 1A
Max Voltage Rating (AC) 250V
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Contact Gender Male
Contact Finish Gold
Current Rating 1A
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Male Pin
Fastening Type Latch Lock/Eject Hooks, Long
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 60
Connector Type Plug
ECCN Code EAR99
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
JESD-609 Code e3
Series XG4
Published 2002
Packaging Bulk
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 12 Weeks
