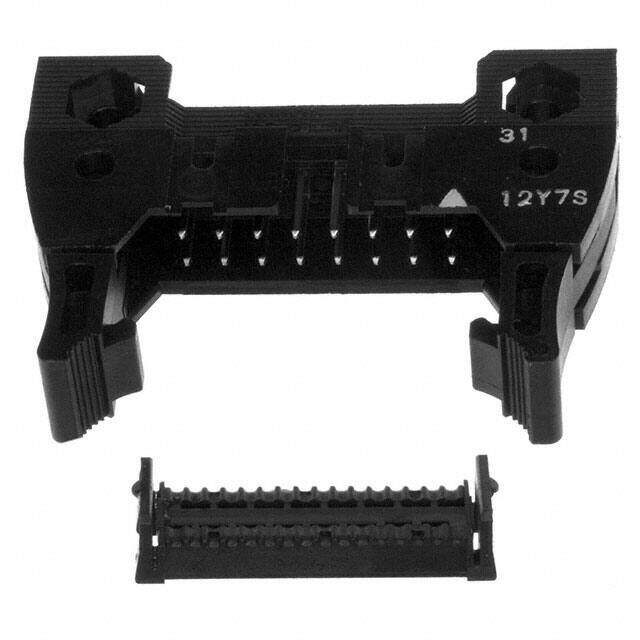

XG4E-1631
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 16POS 1A OPENEND COVER
PDF
/
Buying Options
Total Price: USD $6.05
Unit Price: USD $6.0456
≥1 USD $6.0456
≥10 USD $5.46216
≥100 USD $5.16032
≥500 USD $5.03448
≥1000 USD $4.7828
≥3000 USD $4.279334
Inventory: 74
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Contact Finish Thickness 5.90μin 0.150μm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Max Current Rating 1A
Max Voltage Rating (AC) 250V
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Resistance 20mOhm
Contact Gender Male
Contact Finish Gold
Current Rating 1A
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Male Pin
Fastening Type Latch Lock/Eject Hooks, Long
Voltage - Rated 250V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Plug
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
JESD-609 Code e3
Series XG4
Published 2002
Packaging Tray
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Factory Lead Time 8 Weeks
