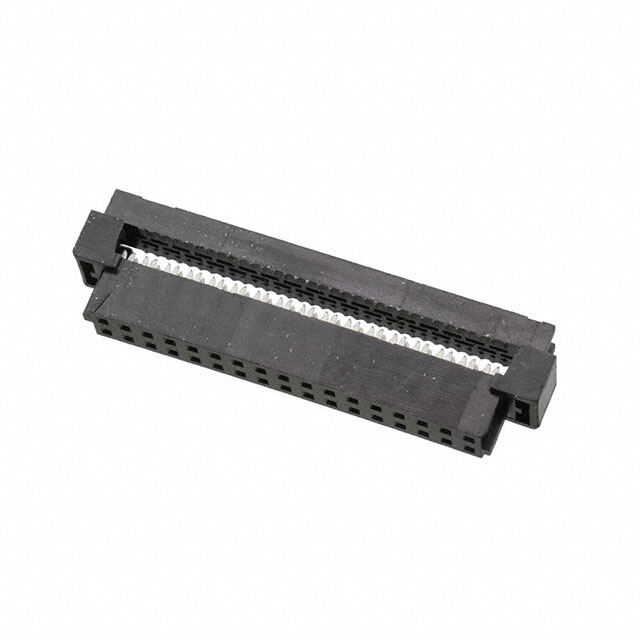

87568-3463
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 34POS 2MM IDT GOLD
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.12863
≥1 USD $3.12863
≥10 USD $2.951535
≥100 USD $2.784467
≥500 USD $2.626856
≥1000 USD $2.478172
Inventory: 6728
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Housing Material Polyester
Technical
Published 2011
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination IDC
ECCN Code EAR99
Connector Type IDC, Receptacle, Socket
Number of Positions 34
Max Operating Temperature 85°C
Min Operating Temperature -20°C
Color Black
Number of Rows 2
Voltage - Rated 125V
Additional Feature MILLI-GRID, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2mm
Total Number of Contacts 34
Orientation Right Angle
Current Rating 1A
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 1.6 inch
Row Spacing - Mating 2.0066 mm
Lead Pitch 2mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Body Depth 0.449 inch
Rated Current (Signal) 1A
Contact Style SQ PIN-SKT
Contact Resistance 30mOhm
Insulation Resistance 5000000000Ohm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Wire/Cable Type Ribbon
Durability 100 Cycles
Wire/Cable Gauge 28 AWG
Contact Pattern RECTANGULAR
Insertion Force-Max 1.946 N
Glow Wire Compliant Non-compliant
Dimensions
Plating Thickness 15μin
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
