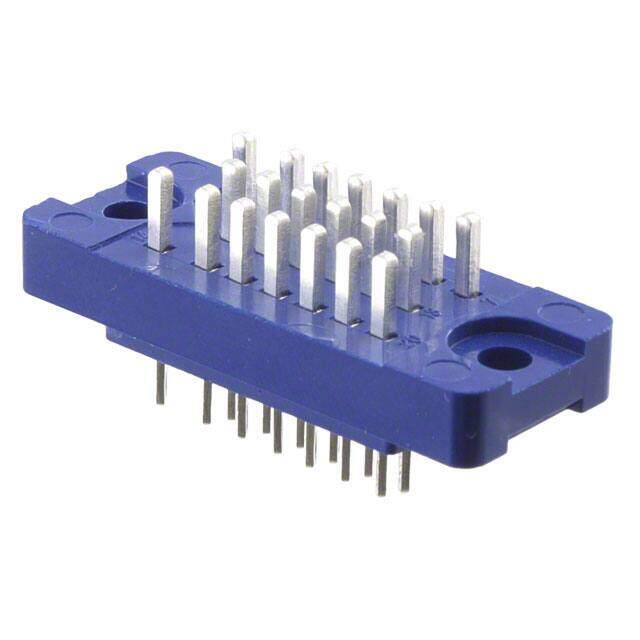

P-1620BA(09)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN MALE 20POS SILVER SLDR EYE
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.4176
≥1 USD $4.4176
≥10 USD $4.015
≥100 USD $3.71426
≥500 USD $3.537424
≥1000 USD $3.095233
≥3000 USD $3.006819
Inventory: 59
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Panel
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED DIALLYL PHTHALATE
Technical
Packaging Bulk
Published 2012
Series Sumicon 1600
JESD-609 Code e4
Feature Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug
Number of Positions 20
Max Operating Temperature 70°C
Min Operating Temperature -30°C
Color Blue
Number of Rows 3
Voltage - Rated 300V
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Contact Type Male Pin
Option GENERAL PURPOSE
Pitch 2.4892mm
Total Number of Contacts 20
Orientation Straight
Depth 13mm
Reach Compliance Code unknown
Current Rating 3A
Contact Finish Silver
Reliability COMMERCIAL
Body Breadth 0.512 inch
Contact Gender Male
Rated Current (Signal) 3A
Contact Resistance 7mOhm
Insulation Resistance 1GOhm
Row Spacing 2.4892 mm
Max Voltage Rating (AC) 300V
Max Current Rating 3A
Dielectric Withstanding Voltage 1000VAC V
Cable Termination Solder Eyelet
Wire Type Discrete
Wire Size (Max) 26 AWG
Dimensions
Length 33mm
Width 33mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
