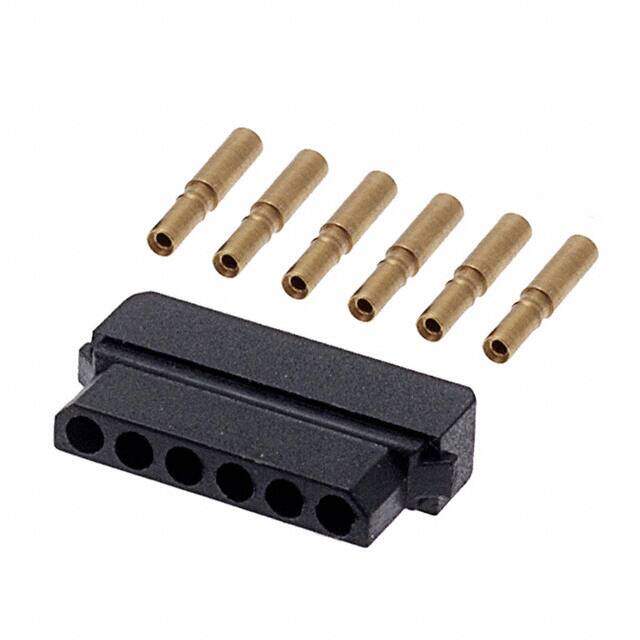

M80-8990605
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 6POS CRIMP 22AWG GOLD
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.058608
≥1 USD $4.058608
≥10 USD $3.828879
≥100 USD $3.612156
≥500 USD $3.407686
≥1000 USD $3.2148
Inventory: 1244
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Length 15.15mm
Technical
Wire Type Discrete
Insertion Force-Max 2.78 N
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Wire Gauge 22 AWG
Contact Resistance 25mOhm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Reach Compliance Code not_compliant
Depth 8.15mm
Orientation Straight
Total Number of Contacts 6
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 120V
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 120V
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 6
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Datamate L-Tek
Published 2001
Packaging Bulk
Physical
Housing Material Polyester
Package / Case SIL
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
