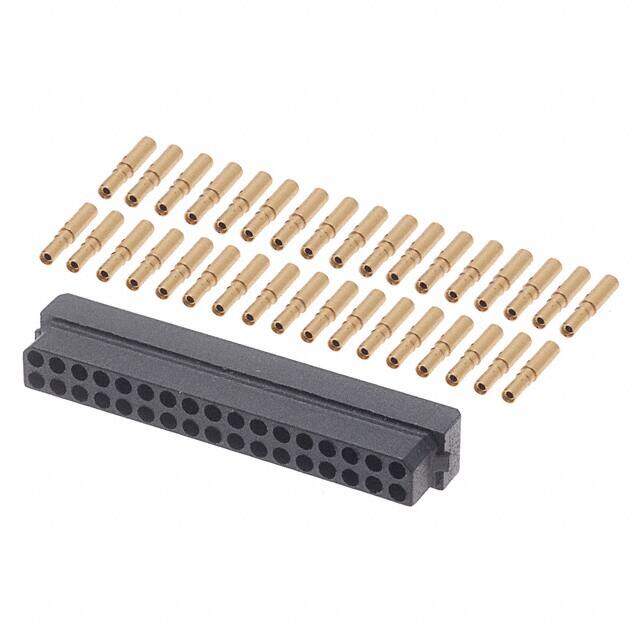

M80-8893405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 34POS CRIMP 22AWG GOLD
PDF
/
Buying Options
Total Price: USD $17.64
Unit Price: USD $17.644
≥1 USD $17.644
≥10 USD $15.29
≥100 USD $14.491488
≥500 USD $14.28152
≥1000 USD $12.601424
≥3000 USD $11.761306
Inventory: 157
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Plating Thickness 11μin
Contact Finish Thickness 11.8μin 0.30μm
Length 37.15mm
Technical
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 22 AWG
Contact Resistance 25mOhm
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Current Rating 3A
Depth 8.15mm
Orientation Straight
Total Number of Contacts 34
Pitch 0.079 2.00mm
Option WITH CABLE ASSEMBLY
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 120V
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Voltage - Rated 120V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 34
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Datamate L-Tek
Published 2001
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
