M80-8892005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

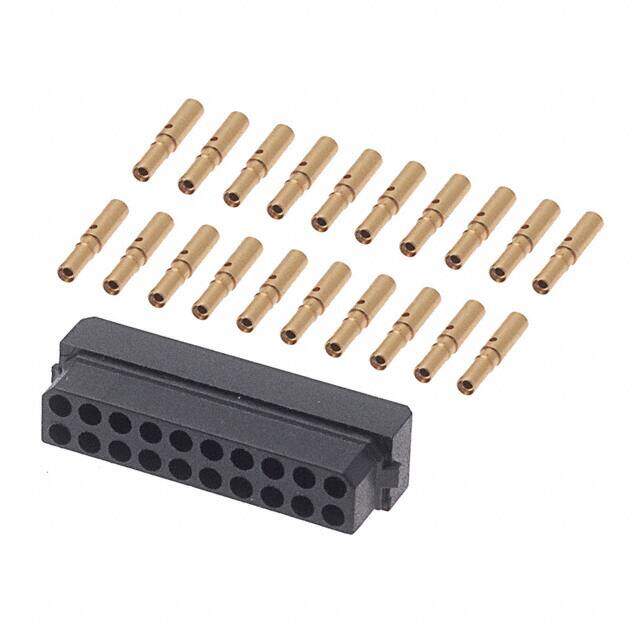

Datamate L-Tek DIL Female Large Bore Crimp Connector, gold clip + gold shell, 10+10 contacts
PDF
/
Buying Options
Total Price: USD $11.13
Unit Price: USD $11.132149
≥1 USD $11.132149
≥10 USD $10.502029
≥100 USD $9.907578
≥500 USD $9.346767
≥1000 USD $8.817707
Inventory: 6028
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Bulk
Published 2001
Series Datamate L-Tek
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 20
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 120V
Additional Feature ROHS COMPLIANT
HTS Code 8536.90.40.00
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 20
Orientation Straight
Depth 8.15mm
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Contact Gender Female
UL Flammability Code 94V-0
Contact Resistance 25mOhm
Wire Gauge 22 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.079 (2.00mm)
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Durability 500 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination Crimp
Wire Type Discrete
Dimensions
Length 23.15mm
Contact Finish Thickness 11.8μin 0.30μm
Plating Thickness 11μin
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
