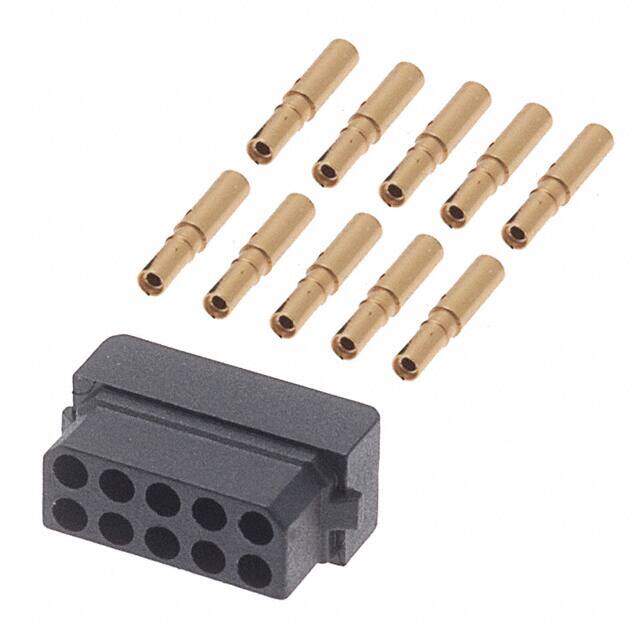

M80-8881005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10POS CRIMP 24-28AWG
PDF
/
Buying Options
Total Price: USD $6.58
Unit Price: USD $6.5824
≥1 USD $6.5824
≥10 USD $5.94792
≥100 USD $5.619328
≥500 USD $5.482048
≥1000 USD $5.208016
≥3000 USD $4.659811
Inventory: 6801
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Plating Thickness 11μin
Contact Finish Thickness 11.8μin 0.30μm
Length 13.15mm
Technical
Wire Type Discrete
Cable Termination Crimp
Max Voltage Rating (DC) 120V
Durability 500 Cycles
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 28 AWG
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Row Spacing 0.079 (2.00mm)
Wire Gauge 24-28 AWG
Contact Resistance 25mOhm
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 3A
Depth 8.15mm
Orientation Straight
Total Number of Contacts 10
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.90.40.00
Additional Feature ROHS COMPLIANT
Voltage - Rated 120V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Datamate L-Tek
Published 2006
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
