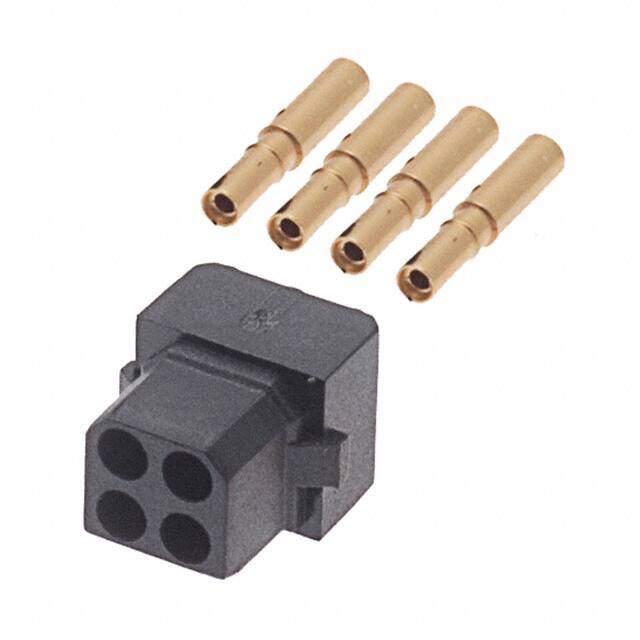

M80-8880405 image
Favorite
M80-8880405 image
Favorite

M80-8880405

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RCPT 4P CRIMP 24-28AWG GOLD
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.9128
≥1 USD $2.9128
≥10 USD $2.64264
≥100 USD $2.503424
≥500 USD $2.445168
≥1000 USD $2.328656
≥3000 USD $2.037587
Inventory: 17744
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Brass
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester

Technical

Packaging Bulk
Published 2010
Series Datamate L-Tek
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 120V
Additional Feature ROHS COMPLIANT
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 4
Orientation Straight
Depth 8.15mm
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Contact Gender Female
Contact Resistance 25mOhm
Wire Gauge 24-28 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.079 (2.00mm)
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 28 AWG
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete

Dimensions

Length 7.15mm
Contact Finish Thickness 11.8μin 0.30μm
Plating Thickness 11μin

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
