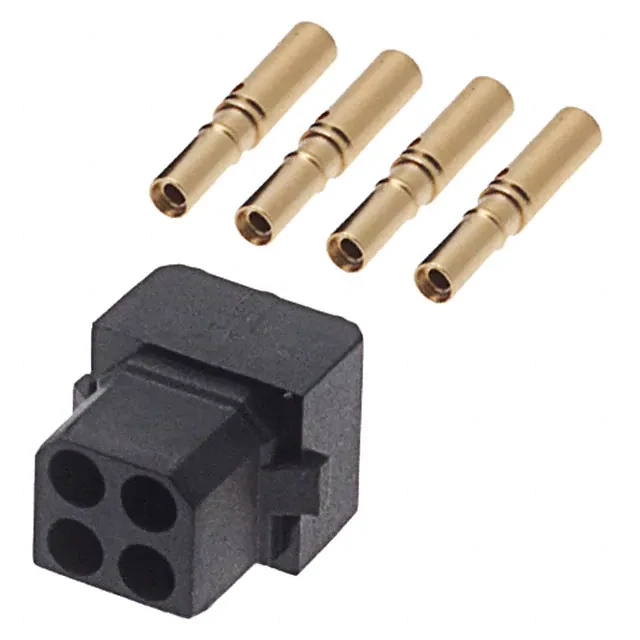

M80-7880405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings L-Tek 2 X 2 FM CRIMP XSM BORE 28-32 AWG
PDF
/
Inventory: 2055
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Technical
Wire Type Discrete
Cable Termination Crimp
Durability 500 Cycles
Wire Gauge (Min) 32 AWG
Wire Gauge (Max) 28 AWG
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1GOhm
Wire Gauge 28-32 AWG
Rated Current (Signal) 3A
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 3A
Reach Compliance Code not_compliant
Total Number of Contacts 4
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 360V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Datamate L-Tek
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass, Copper
Supply Chain
Factory Lead Time 13 Weeks
