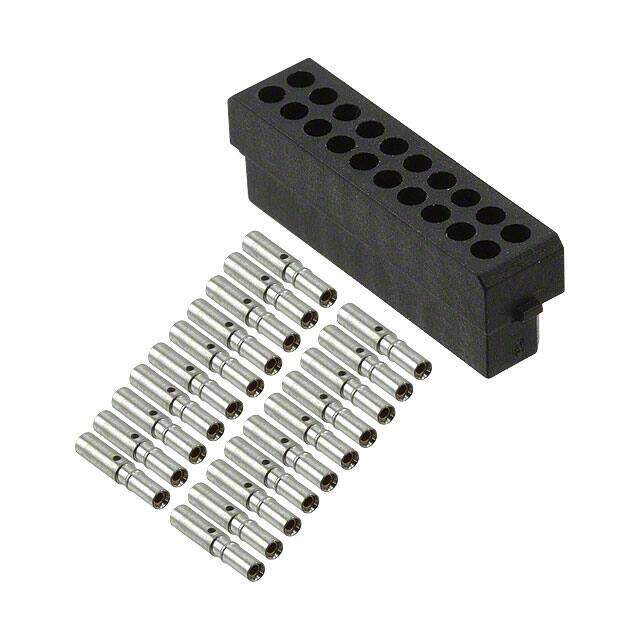

M80-6132042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 10+10 FEMALE CRIMP HSG
PDF
/
Inventory: 8229
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material BERYLLIUM COPPER
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Published 2011
Series Datamate L-Tek
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 20
Color Black
Number of Rows 2
Voltage - Rated 120V
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 20
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.911 inch
Contact Gender Female
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Wire Gauge 22 AWG
Insulation Resistance 100000000Ohm
Row Spacing 0.079 (2.00mm)
Durability 500 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination Crimp
Wire Type Discrete
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Compliance
RoHS Status ROHS3 Compliant
