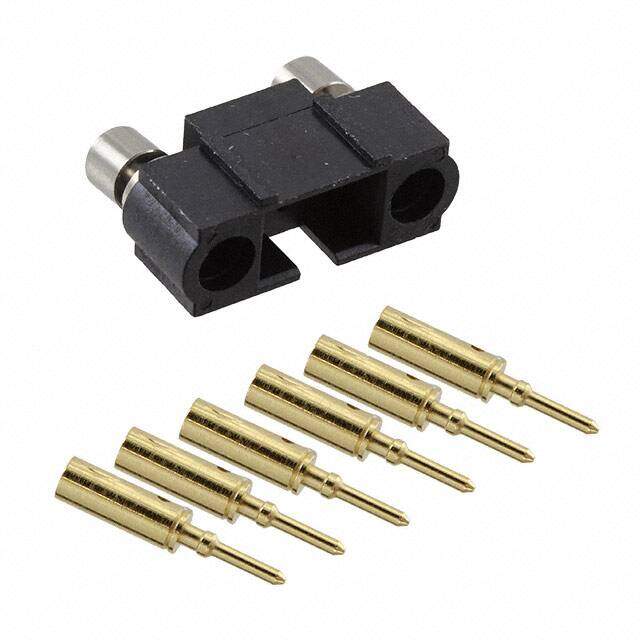

M80-5830605
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN HEADER 6POS CRIMP 24-28AWG
PDF
/
Buying Options
Total Price: USD $9.93
Unit Price: USD $9.932494
≥1 USD $9.932494
≥10 USD $9.370283
≥100 USD $8.839891
≥500 USD $8.339511
≥1000 USD $7.867468
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Mounting Option 1 LOCKING
Mounting Option 2 JACKSCREW
Technical
Packaging Bulk
Series Datamate J-Tek
JESD-609 Code e4
Feature Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Connector Type Header
Number of Positions 6
Color Black
Number of Rows 2
Additional Feature COMPATIBLE CONTACT: M80-1950005, PANEL MOUNTABLE
Fastening Type Screw Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 6
Reach Compliance Code not_compliant
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Body Depth 0.309 inch
Wire Gauge 24-28 AWG
Insulation Resistance 100000000Ohm
Row Spacing 0.079 (2.00mm)
Body/Shell Style RECEPTACLE
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Insulation Diameter-Min 0.043 inch
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Compliance
RoHS Status ROHS3 Compliant
