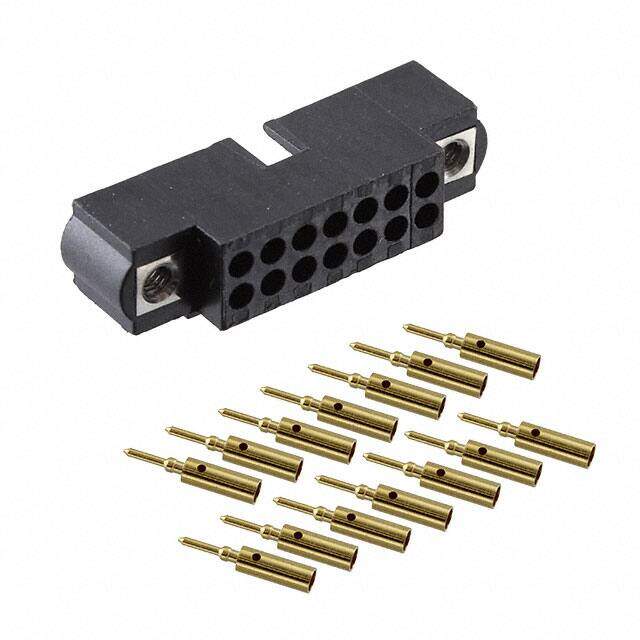

M80-5601405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 7+7 Way Male Crimp L/Bore + JS
PDF
/
Buying Options
Total Price: USD $15.73
Unit Price: USD $15.7344
≥1 USD $15.7344
≥10 USD $13.64
≥100 USD $12.927904
≥500 USD $12.740464
≥1000 USD $11.24156
≥3000 USD $10.492099
Inventory: 188
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 10μin
Contact Finish Thickness 10.0μin 0.25μm
Technical
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Body/Shell Style RECEPTACLE
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Wire Gauge 22 AWG
Rated Current (Signal) 3A
Body Depth 0.309 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Contact Gender Male
Body Length or Diameter 0.945 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Reach Compliance Code not_compliant
Total Number of Contacts 14
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
HTS Code 8536.69.40.40
Additional Feature PANEL MOUNTABLE
Number of Rows 2
Color Black
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Datamate J-Tek
Packaging Bulk
Physical
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material BRASS
Supply Chain
Factory Lead Time 9 Weeks
