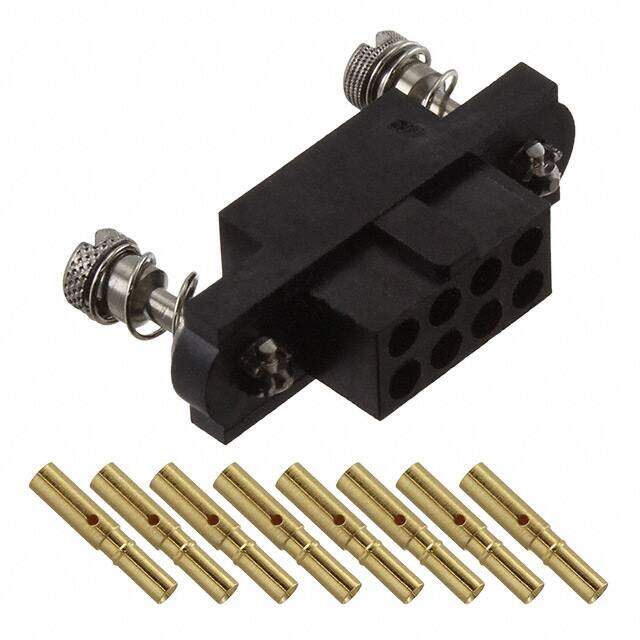

M80-4D10805FC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 8POS CRIMP 22AWG GOLD
PDF
/
Inventory: 4240
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material BERYLLIUM COPPER
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Mounting Option 1 LOCKING
Technical
Packaging Bulk
Published 2011
Series Datamate J-Tek
JESD-609 Code e4
Feature Mating Flange, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Receptacle
Number of Positions 8
Color Black
Number of Rows 2
Fastening Type Screw Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 8
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.709 inch
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Wire Gauge 22 AWG
Insulation Resistance 100000000Ohm
Row Spacing 0.079 (2.00mm)
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Plating Thickness 11μin
Compliance
RoHS Status ROHS3 Compliant
