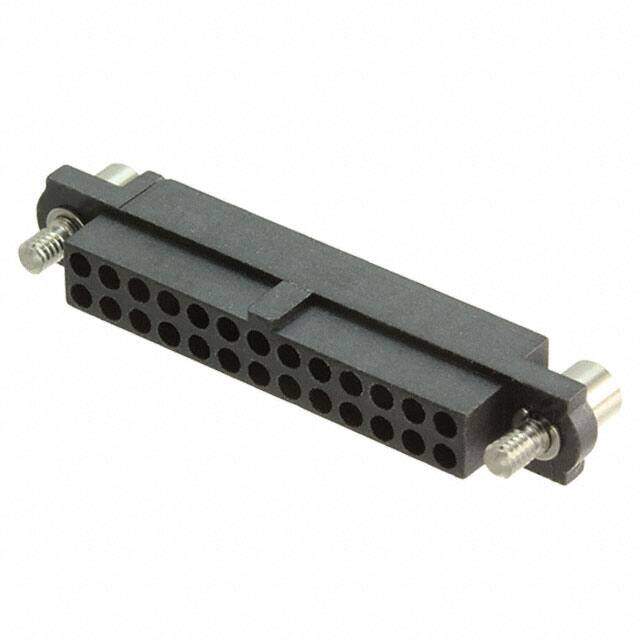

M80-4812642
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 13+13 WAY FMALE CRMP S/BORE W/HEX JS
PDF
/
Buying Options
Total Price: USD $24
Unit Price: USD $23.9976
≥1 USD $23.9976
≥10 USD $21.0144
≥100 USD $20.106592
≥500 USD $19.458032
≥1000 USD $18.809472
≥3000 USD $17.771706
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 11μin
Contact Finish Thickness 11.8μin 0.30μm
Technical
Insulation Diameter-Min 0.043 inch
Wire Type Discrete
Cable Termination Crimp
Durability 500 Cycles
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 28 AWG
Body/Shell Style PLUG
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Wire Gauge 24-28 AWG
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Contact Gender Female
Body Length or Diameter 1.417 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Reach Compliance Code not_compliant
Total Number of Contacts 26
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature COMPATABLE CONTACT: M80-0130001, PANEL MOUNTABLE
Number of Rows 2
Color Black
Number of Positions 26
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Jackscrews
JESD-609 Code e3
Series Datamate J-Tek
Published 2011
Packaging Bulk
Physical
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
