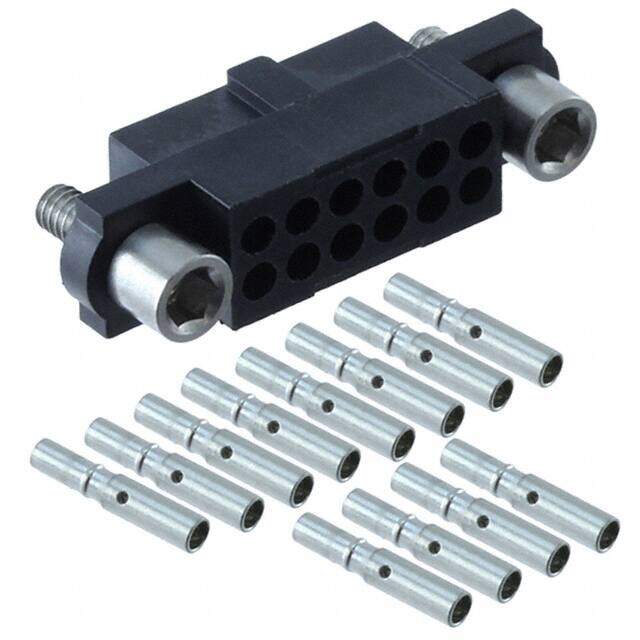

M80-4801242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 6+6 WAY FEMALE CRMP L/BORE W/HEX JS
PDF
/
Buying Options
Total Price: USD $17.93
Unit Price: USD $17.9256
≥1 USD $17.9256
≥10 USD $15.53552
≥100 USD $14.724512
≥500 USD $14.5112
≥1000 USD $12.804088
≥3000 USD $11.950435
Inventory: 25
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Technical
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Wire Gauge 22 AWG
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Contact Gender Female
Body Length or Diameter 0.866 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Reach Compliance Code not_compliant
Total Number of Contacts 12
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature PANEL MOUNTABLE
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Jackscrews
JESD-609 Code e3
Series Datamate J-Tek
Published 2011
Packaging Bulk
Physical
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
