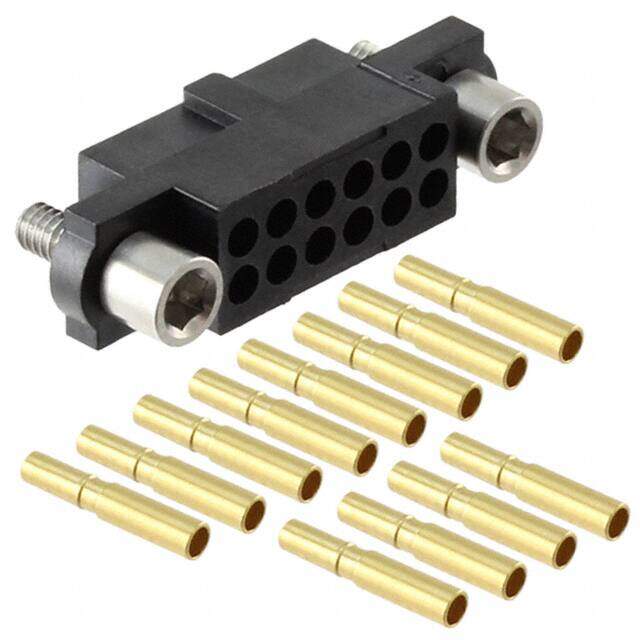

M80-4801205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 6+6 WAY FEMALE CRMP L/BORE W/HEX JS
PDF
/
Buying Options
Total Price: USD $17.93
Unit Price: USD $17.9256
≥1 USD $17.9256
≥10 USD $15.53552
≥100 USD $14.724512
≥500 USD $14.5112
≥1000 USD $12.804088
≥3000 USD $11.950435
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Technical
Packaging Bulk
Published 2013
Series Datamate J-Tek
JESD-609 Code e4
Feature Jackscrews
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 12
Max Operating Temperature 125°C
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Wire Gauge 22 AWG
Contact Resistance 25mOhm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Reach Compliance Code not_compliant
Depth 7.55mm
Orientation Straight
Total Number of Contacts 12
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature PANEL MOUNTABLE
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Length 22mm
