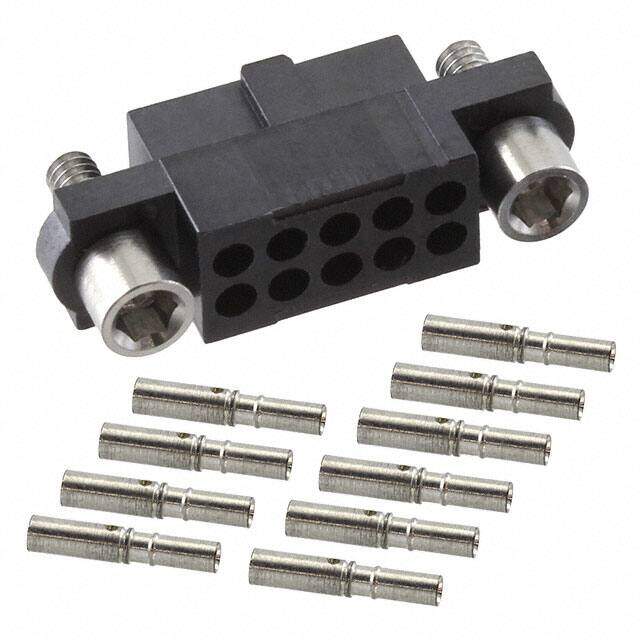

M80-4801042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 5+5 WAY FEMALE CRMP L/BORE W/HEX JS
PDF
/
Buying Options
Total Price: USD $16.6
Unit Price: USD $16.5968
≥1 USD $16.5968
≥10 USD $14.38096
≥100 USD $13.630144
≥500 USD $13.432496
≥1000 USD $11.852192
≥3000 USD $11.062022
Inventory: 201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Technical
Packaging Bulk
Published 2011
Series Datamate J-Tek
JESD-609 Code e3
Feature Jackscrews
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Additional Feature PANEL MOUNTABLE
HTS Code 8536.90.40.00
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 10
Orientation Straight
Depth 7.55mm
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Resistance 25mOhm
Wire Gauge 22 AWG
Row Spacing 0.079 (2.00mm)
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination Crimp
Wire Type Discrete
Dimensions
Length 20mm
Contact Finish Thickness 11.8μin 0.30μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
