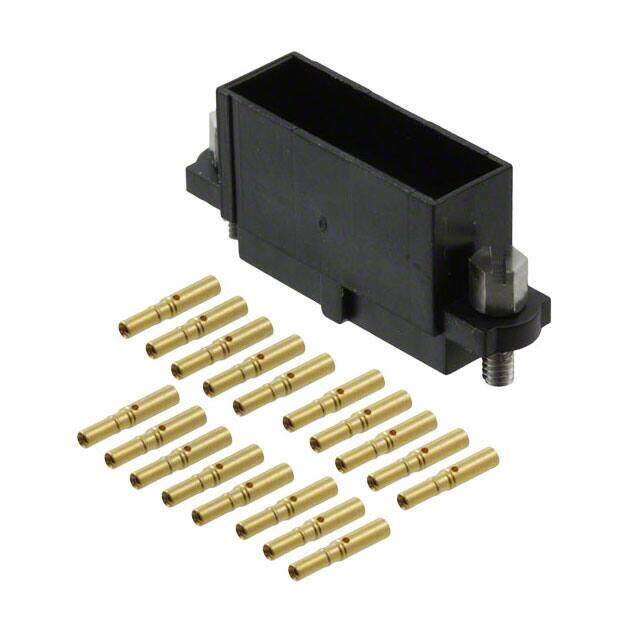

M80-4661805
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 9+9 WAY EXT WALL FM CRIMP S/BORE W/JS
PDF
/
Buying Options
Total Price: USD $15.43
Unit Price: USD $15.4264
≥1 USD $15.4264
≥10 USD $13.36984
≥100 USD $12.671648
≥500 USD $12.48808
≥1000 USD $11.01892
≥3000 USD $10.284314
Inventory: 68
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material BERYLLIUM COPPER
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Technical
Packaging Bulk
Published 2011
Series Datamate J-Tek
JESD-609 Code e4
Feature Jackscrews, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 18
Color Black
Number of Rows 2
Additional Feature COMPATIBLE CONTACT: M80-0130005
HTS Code 8536.69.40.40
Fastening Type Screw Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 18
Reach Compliance Code not_compliant
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Contact Gender Female
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Body Depth 0.494 inch
Rated Current (Signal) 3A
Wire Gauge 24-28 AWG
Insulation Resistance 100000000Ohm
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
Polarization Key POLARIZED HOUSING
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 24 AWG
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Compliance
RoHS Status ROHS3 Compliant
