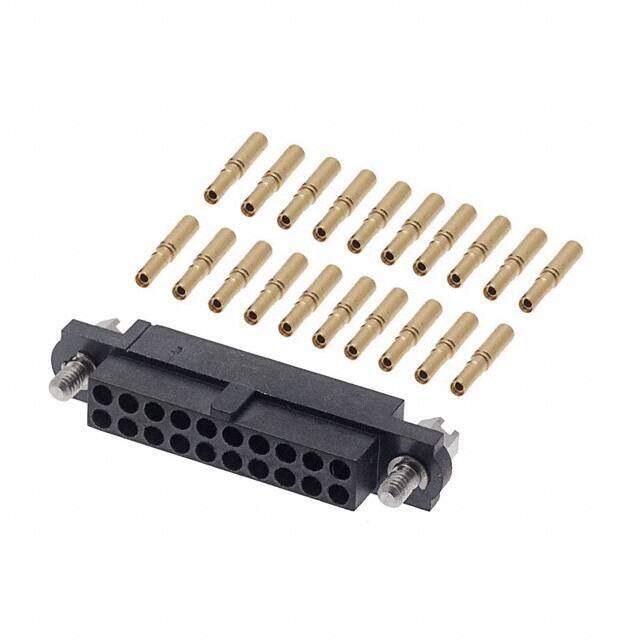

M80-4612005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 20POS CRIMP 24-28AWG
PDF
/
Buying Options
Total Price: USD $20.5
Unit Price: USD $20.4952
≥1 USD $20.4952
≥10 USD $17.95112
≥100 USD $17.175136
≥500 USD $16.621088
≥1000 USD $16.066952
≥3000 USD $15.180528
Inventory: 1144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Technical
Packaging Bulk
Published 2004
Series Datamate J-Tek
JESD-609 Code e4
Feature Jackscrews
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 20
Color Black
Number of Rows 2
Additional Feature COMPATIBLE CONTACT: M80-0130005, PANEL MOUNTABLE
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 20
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.181 inch
Contact Gender Female
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Wire Gauge 24-28 AWG
Insulation Resistance 100000000Ohm
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
Polarization Key POLARIZED HOUSING
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 24 AWG
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
