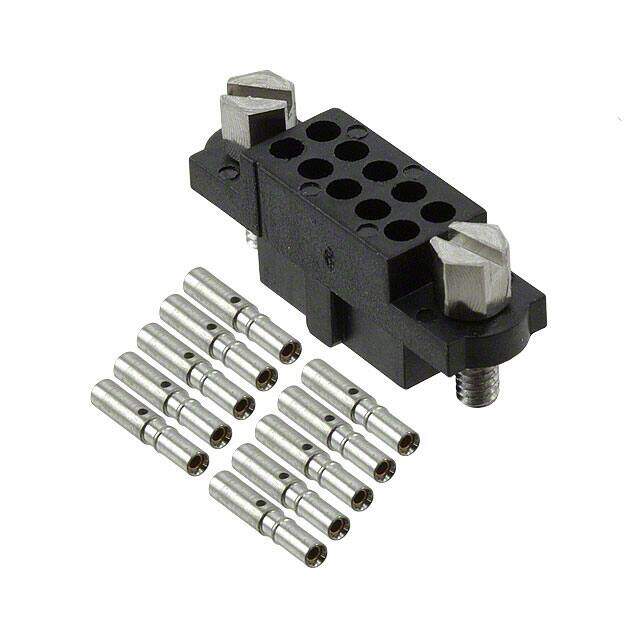

M80-4611042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 5+5 POS FEM +J/S SM BORE TIN
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Technical
Packaging Bulk
Published 2003
Series Datamate J-Tek
JESD-609 Code e3
Feature Jackscrews
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 120V
Additional Feature COMPATIBLE CONTACT: M80-0130001, PANEL MOUNTABLE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 10
Orientation Straight
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Lead Pitch 2mm
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Resistance 25mOhm
Wire Gauge 24-28 AWG
Insulation Resistance 100MOhm
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 24 AWG
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Dimensions
Height 7.55mm
Length 20mm
Width 5.55mm
Contact Finish Thickness 11.8μin 0.30μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
