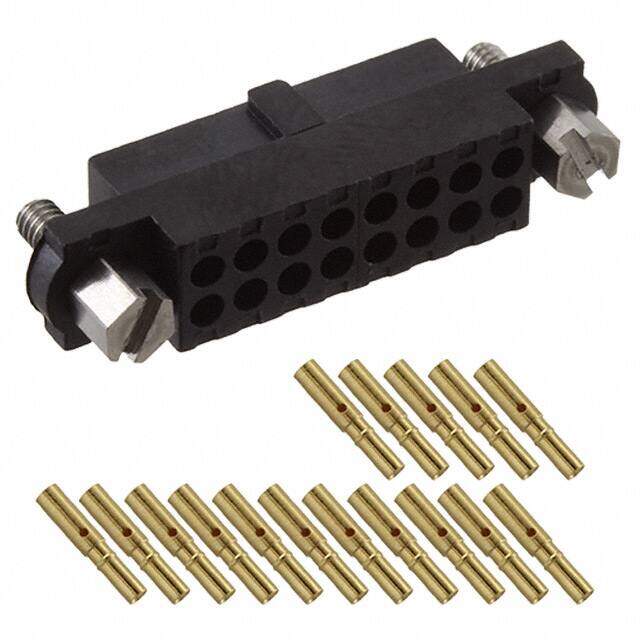

M80-4601605
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 8+8 WAY FEMALE CRIMP L/BORE W/JS
PDF
/
Buying Options
Total Price: USD $18.15
Unit Price: USD $18.1544
≥1 USD $18.1544
≥10 USD $15.89896
≥100 USD $15.212032
≥500 USD $14.721168
≥1000 USD $14.23048
≥3000 USD $13.445344
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Technical
Packaging Bulk
Published 2013
Series Datamate J-Tek
JESD-609 Code e4
Feature Jackscrews, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 16
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 800V
Additional Feature PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110005
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 16
Reach Compliance Code not_compliant
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Wire Gauge 22 AWG
Insulation Resistance 100MOhm
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination Crimp
Wire Type Discrete
Contact Design LOOSE
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
