M80-4601442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

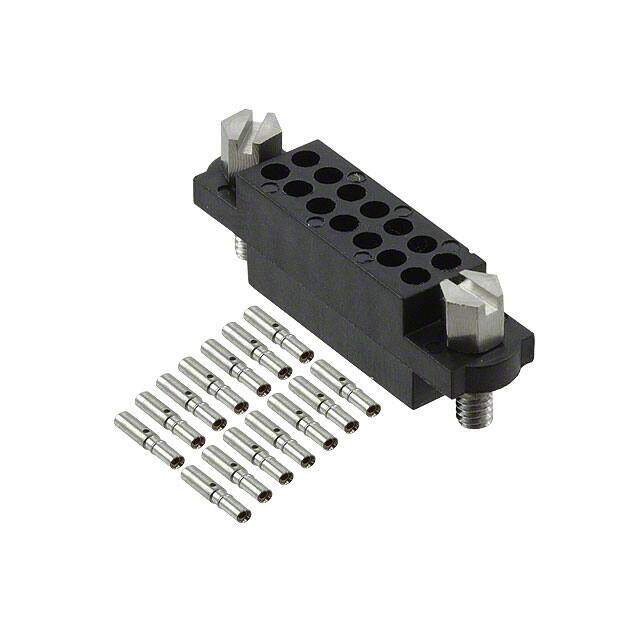

Headers & Wire Housings 7+7 POS FEM +J/S LG BORE TIN
PDF
/
Buying Options
Total Price: USD $16.98
Unit Price: USD $16.984
≥1 USD $16.984
≥10 USD $14.87112
≥100 USD $14.228192
≥500 USD $13.76936
≥1000 USD $13.310352
≥3000 USD $12.575939
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Width 5.55mm
Length 24mm
Height 7.55mm
Technical
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Body/Shell Style PLUG
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100MOhm
Wire Gauge 22 AWG
Contact Resistance 25mOhm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Contact Gender Female
Lead Pitch 2mm
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 3A
Depth 7.55mm
Orientation Straight
Total Number of Contacts 14
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110001
Voltage - Rated 120V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 14
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Jackscrews, Polarizing Key
JESD-609 Code e3
Series Datamate J-Tek
Published 2003
Packaging Bulk
Physical
Housing Material Polyphenylene
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
