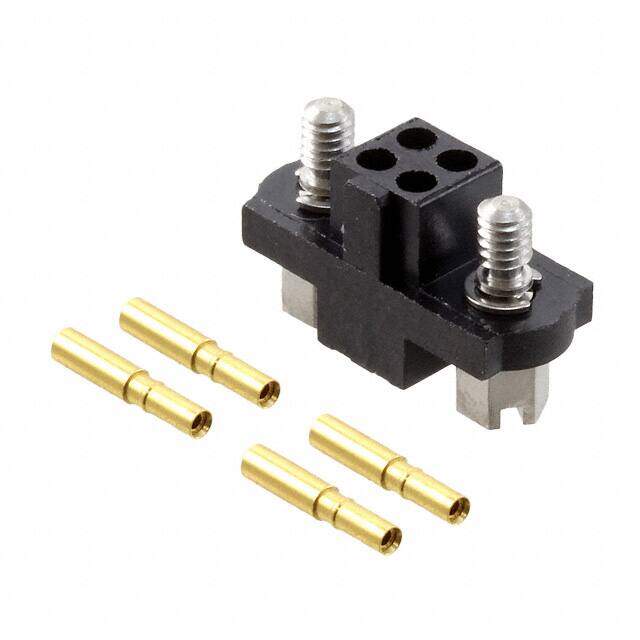

M80-4600405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 2+2 FEM BORE CRIMP AU CLIP/SHELL
PDF
/
Buying Options
Total Price: USD $13.2
Unit Price: USD $13.2
≥1 USD $13.2
≥10 USD $11.70048
≥100 USD $11.250624
≥500 USD $10.800592
≥1000 USD $10.20052
≥3000 USD $9.300438
Inventory: 299
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Length 14mm
Technical
Wire Type Discrete
Cable Termination Crimp
Wire/Cable Gauge 22 AWG
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Body/Shell Style PLUG
Row Spacing 0.079 (2.00mm)
Insulation Resistance 100000000Ohm
Wire Gauge 22 AWG
Contact Resistance 25mOhm
Rated Current (Signal) 3A
Contact Gender Female
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Depth 7.55mm
Orientation Straight
Total Number of Contacts 4
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110005
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Jackscrews, Polarizing Key
JESD-609 Code e4
Series Datamate J-Tek
Published 2001
Packaging Bulk
