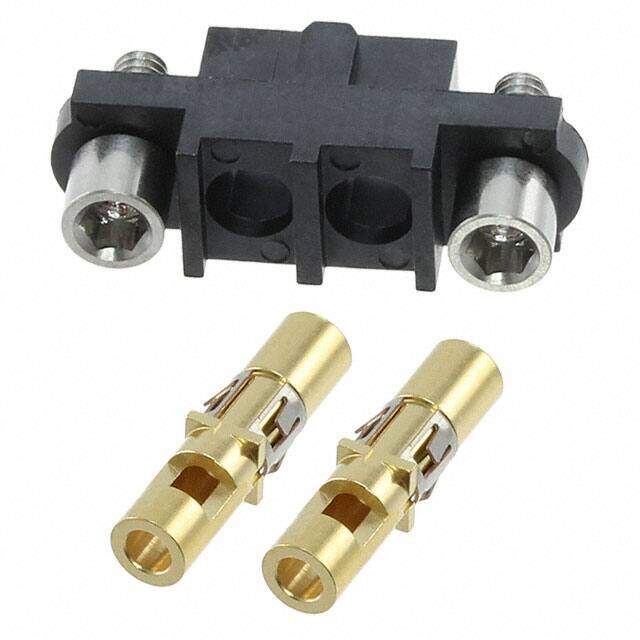

M80-4000000F2-02-327-00-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn Datamate F 2Power POS 4mm Crimp ST Cable Mount Bag
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.104713
≥1 USD $19.104713
≥10 USD $18.023308
≥100 USD $17.003127
≥500 USD $16.040686
≥1000 USD $15.132724
Inventory: 9470
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 18mm
Technical
Wire Type Discrete
Insertion Force-Max 8.0064 N
Cable Termination Crimp
Durability 500 Cycles
Max Current Rating 10A
Termination Type SOLDER
Max Voltage Rating (AC) 120V
Wire Gauge 16 AWG
Contact Resistance 6mOhm
UL Flammability Code 94V-0
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Depth 12.7mm
Orientation Straight
Total Number of Contacts 2
Pitch 0.157 4.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket, Power
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature LATCHED
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 2
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Jackscrews
Series Datamate Mix-Tek
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Housing Material Polyphenylene
Mounting Type Free Hanging (In-Line)
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 16 Weeks
