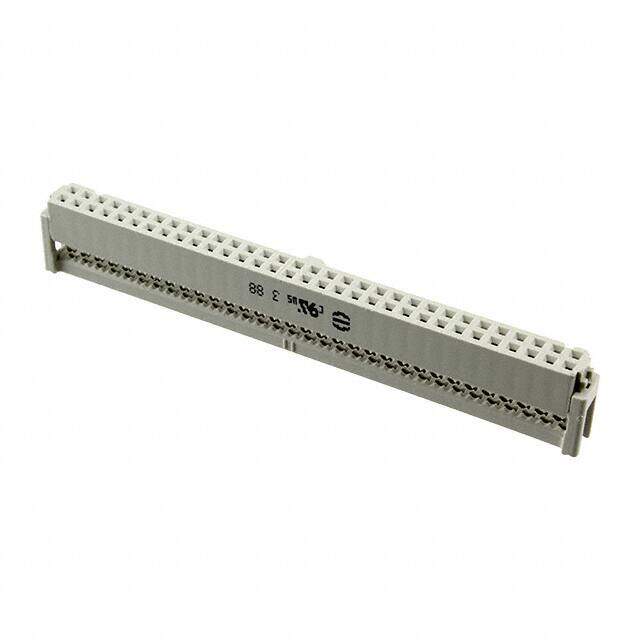

09185647803

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description SOCKET, IDC, W/O S/RELIEF, 64WAY
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7344
≥1 USD $4.7344
≥10 USD $3.975664
≥100 USD $3.786288
≥500 USD $3.218336
≥1000 USD $2.745054
Inventory: 78
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBTP 30% FIBRE ENHANCED

Technical

Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 64
Color Grey
Number of Rows 2
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 64
Orientation Right Angle
Current Rating 2A
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Lead Pitch 2.54mm
Contact Gender Female
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Termination Type IDC
Polarization Key CENTER
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Durability 50 Cycles
Cable Termination IDC
Wire Type Ribbon Cable

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
