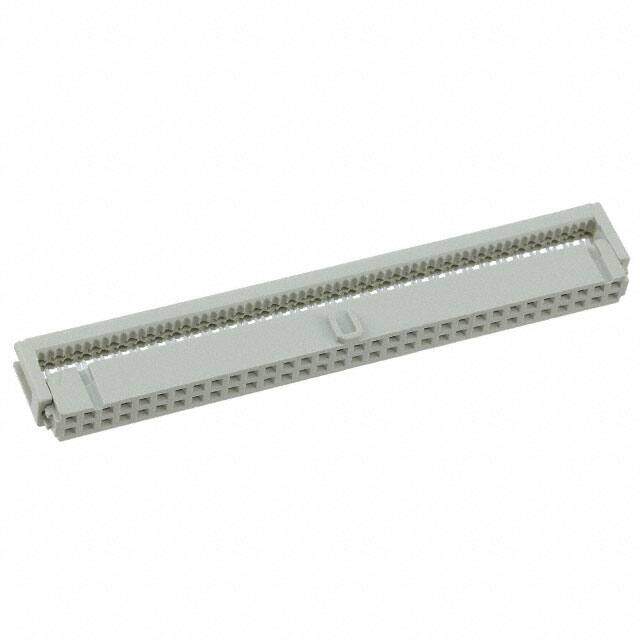

09185646803
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 64P IDC FLAT CBL SKT NO STRN RELIEF
PDF
/
Buying Options
Total Price: USD $6.04
Unit Price: USD $6.0368
≥1 USD $6.0368
≥10 USD $5.030608
≥100 USD $4.779104
≥500 USD $4.024486
≥1000 USD $3.521426
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBTP 30% FIBRE ENHANCED
Weight 10.119986g
Technical
Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 64
Number of Rows 2
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 64
Orientation Right Angle
Reference Standard UL
Reliability COMMERCIAL
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Wire Gauge 26-28 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Polarization Key CENTER
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
