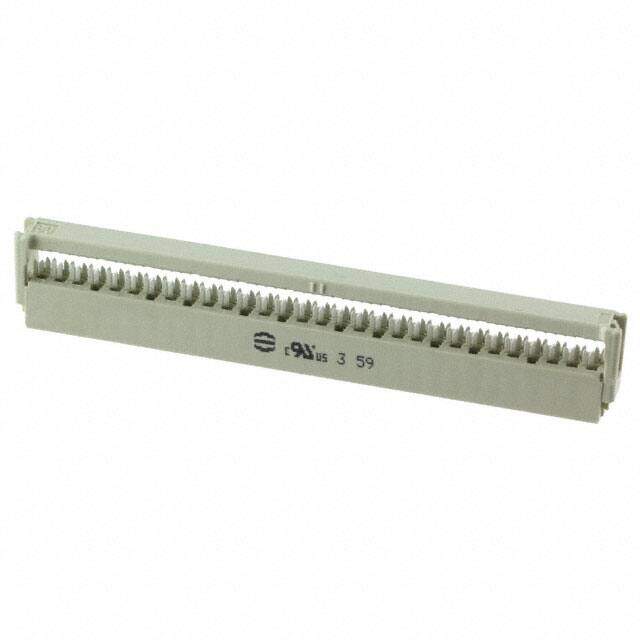

09185607813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
SOCKET, IDC, WITH S/RELIEF, 60WAY
PDF
/
Buying Options
Total Price: USD $5.54
Unit Price: USD $5.544
≥1 USD $5.544
≥10 USD $4.618416
≥100 USD $4.387504
≥500 USD $3.694733
≥1000 USD $3.232891
Inventory: 633
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBTP 30% FIBRE ENHANCED
Technical
Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Grey
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 60
Orientation Right Angle
Depth 7.2mm
Current Rating 2A
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Lead Pitch 2.54mm
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Polarization Key CENTER
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Durability 50 Cycles
Number of Poles 60
Cable Termination IDC
Contact Current Rating 1A
Wire Type Ribbon Cable
Dimensions
Length 80.8mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
