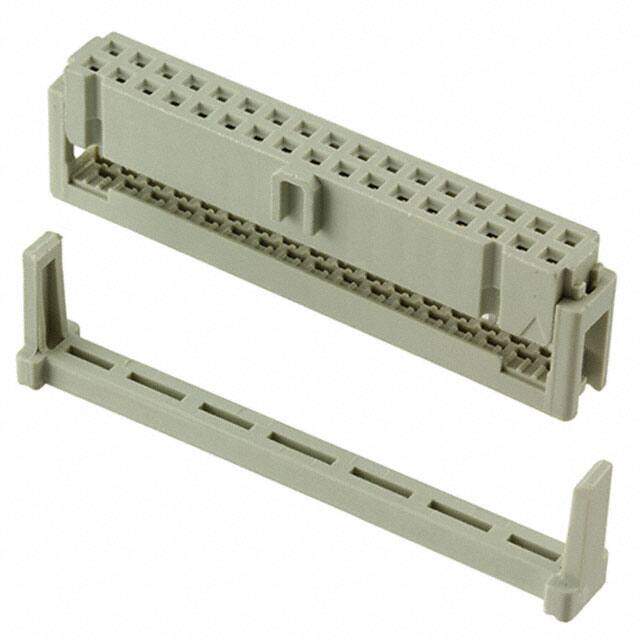

09185346814
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings SEK-18 SV FEM TYP A ANS ZGL 34P PL2
PDF
/
Buying Options
Total Price: USD $3.47
Unit Price: USD $3.4672
≥1 USD $3.4672
≥10 USD $3.14776
≥100 USD $2.773056
≥500 USD $2.357098
≥1000 USD $2.010466
Inventory: 140
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Termination Type IDC
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Reliability COMMERCIAL
Reference Standard UL
Current Rating 2A
Total Number of Contacts 34
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Number of Rows 2
Number of Positions 34
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End, Polarizing Key, Strain Relief
Series SEK
Packaging Tray
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 7 Weeks
