09185267803
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

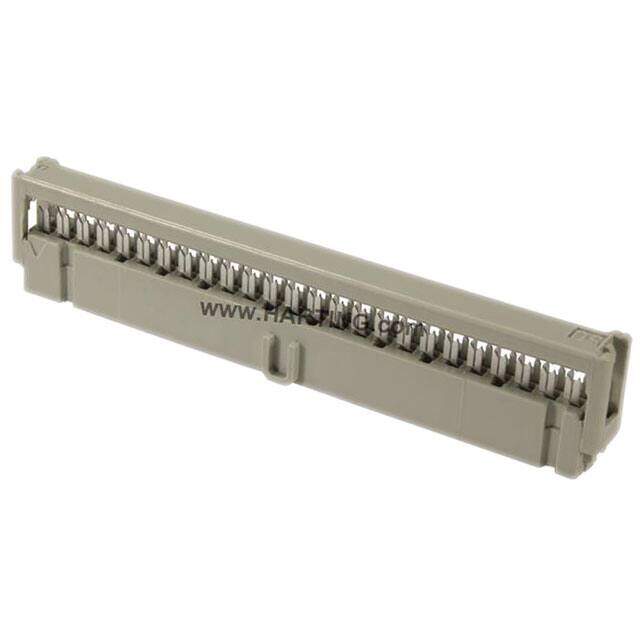

SOCKET, IDC, W/O S/RELIEF, 26WAY
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $2.17888
≥100 USD $1.919808
≥500 USD $1.631837
≥1000 USD $1.391861
≥3000 USD $1.247875
Inventory: 141
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 37.6mm
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Contact Current Rating 1A
Cable Termination IDC
Number of Poles 26
Durability 50 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Lead Pitch 2.54mm
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Depth 7.2mm
Orientation Right Angle
Total Number of Contacts 26
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Number of Rows 2
Color Grey
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Receptacle
ECCN Code EAR99
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key
Series SEK
Packaging Bulk
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
