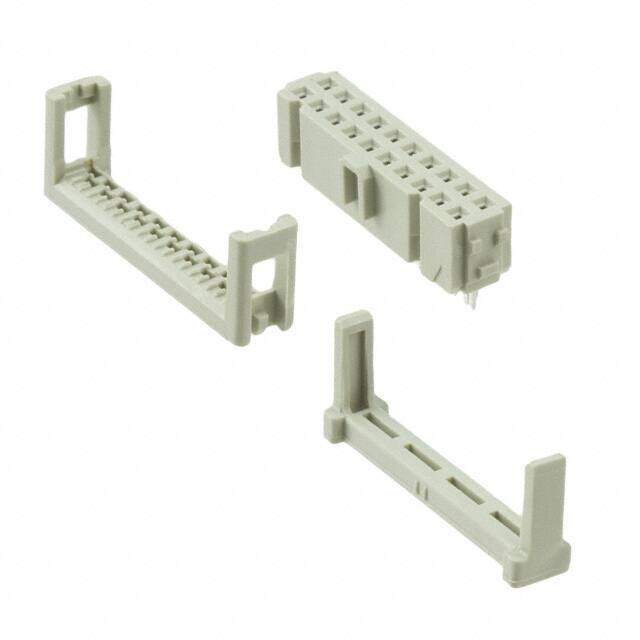

09185206813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 20POS IDC 26-28AWG
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
≥10 USD $2.19912
≥100 USD $1.937584
≥500 USD $1.646938
≥1000 USD $1.404744
≥3000 USD $1.307865
Inventory: 239
Minimum: 1
-
+
Technical Details
Dimensions
Length 30mm
Width 30mm
Height 14.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Technical
Test Voltage 500V
Wire Type Ribbon Cable
Contact Current Rating 1A
Cable Termination IDC
Number of Poles 20
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Contact Gender Female
Lead Pitch 2.54mm
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Current Rating 2A
Depth 7.2mm
Orientation Right Angle
Total Number of Contacts 20
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Subcategory Headers and Edge Type Connectors
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Number of Rows 2
Color Grey
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key, Strain Relief
Series SEK
Packaging Tray
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
