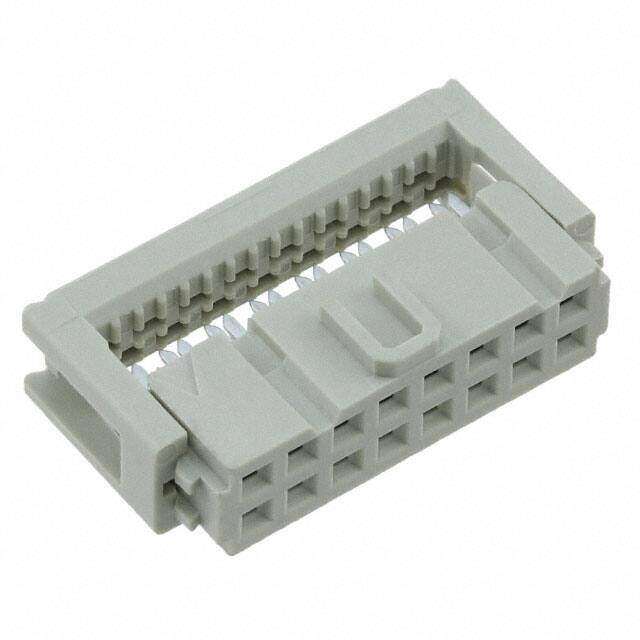

09185165803
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings SEK-18 SV FEM TYP A 16P AU0.76
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.40064
≥100 USD $2.115344
≥500 USD $1.798051
≥1000 USD $1.533629
≥3000 USD $1.374974
Inventory: 132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBTP 30% FIBRE ENHANCED
Technical
Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 16
Number of Rows 2
Gender Female
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 16
Orientation Straight
Current Rating 2A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.98 inch
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Wire Gauge 26-28 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Termination Type IDC
Polarization Key CENTER
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
RoHS Status ROHS3 Compliant
