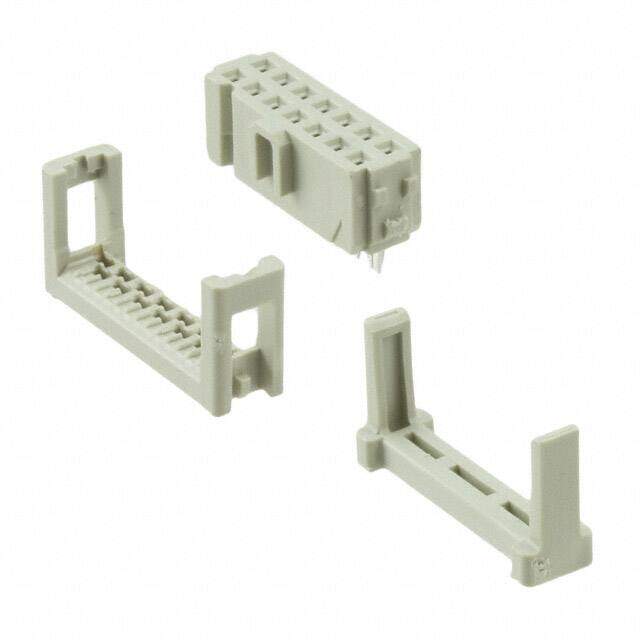

CONNECTOR, RECEPTACLE, IDC, 2.54MM, 14P
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.848
≥1 USD $1.848
≥10 USD $1.60512
≥100 USD $1.434048
≥500 USD $1.195075
≥1000 USD $1.024355
≥3000 USD $0.956058
Inventory: 378
Minimum: 1
-
+
Technical Details
Technical
Contact Current Rating 1A
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Test Voltage 500V
Cable Termination IDC
Number of Poles 14
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Lead Pitch 2.54mm
Reliability COMMERCIAL
Voltage - Rated AC 350V
Reference Standard UL
Current Rating 2A
Depth 6.1mm
Orientation Right Angle
Total Number of Contacts 14
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 350V
Subcategory Headers and Edge Type Connectors
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Number of Rows 2
Color Grey
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key, Strain Relief
Series SEK
Packaging Tray
Dimensions
Height 14.5mm
Length 22.4mm
Width 22.4mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
