09185107813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

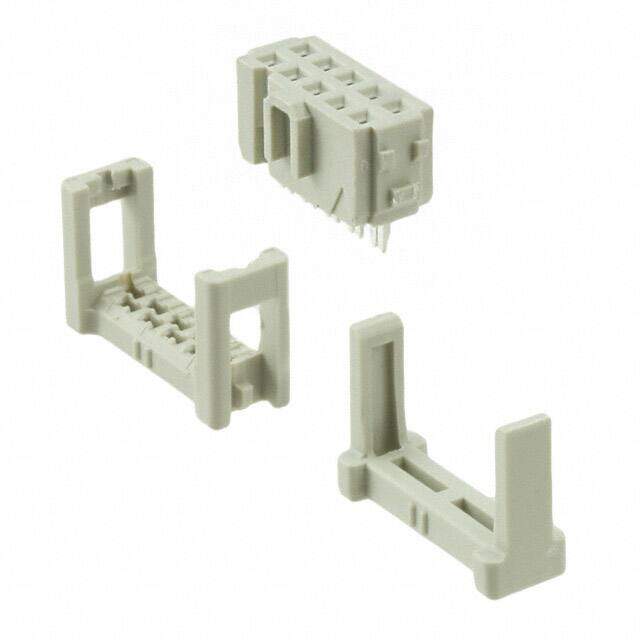

SOCKET, IDC, WITH S/RELIEF, 10WAY
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.62888
≥100 USD $1.455872
≥500 USD $1.213203
≥1000 USD $1.039896
≥3000 USD $0.922038
Inventory: 218
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene
Technical
Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Grey
Number of Rows 2
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 10
Orientation Right Angle
Depth 7.2mm
Current Rating 2A
Reference Standard UL
Voltage - Rated AC 350V
Reliability COMMERCIAL
Lead Pitch 2.54mm
Mating Information NO
UL Flammability Code 94V-0
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Contact Current Rating 1A
Cable Termination IDC
Number of Poles 10
Durability 50 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Max Current Rating 1A
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 2A
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 17.3mm
