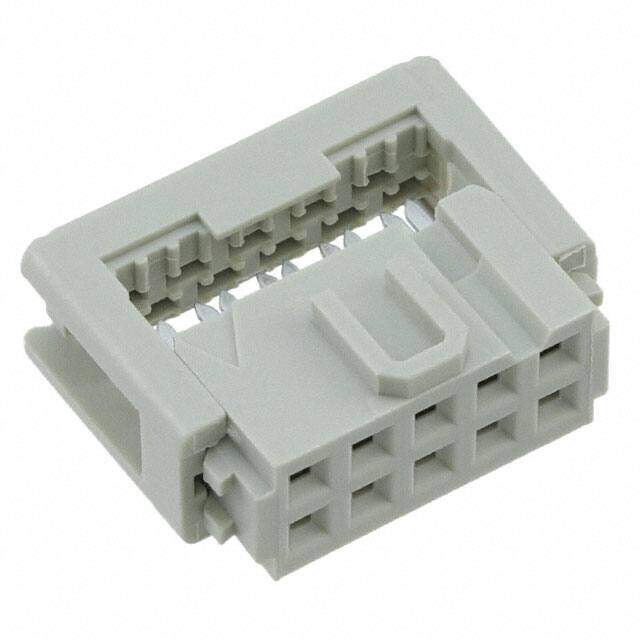

09185106804
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings SEK-18 SV FEM TYP A ANS 10P PL2
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.58752
≥100 USD $1.41856
≥500 USD $1.182104
≥1000 USD $1.013232
≥3000 USD $0.898401
Inventory: 112
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Termination Type IDC
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Body Length or Diameter 0.681 inch
Reliability COMMERCIAL
Reference Standard UL
Current Rating 1A
Orientation Straight
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Voltage - Rated 320V
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End, Polarizing Key
Series SEK
Packaging Bulk
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Thermoplastic
Supply Chain
Factory Lead Time 7 Weeks
