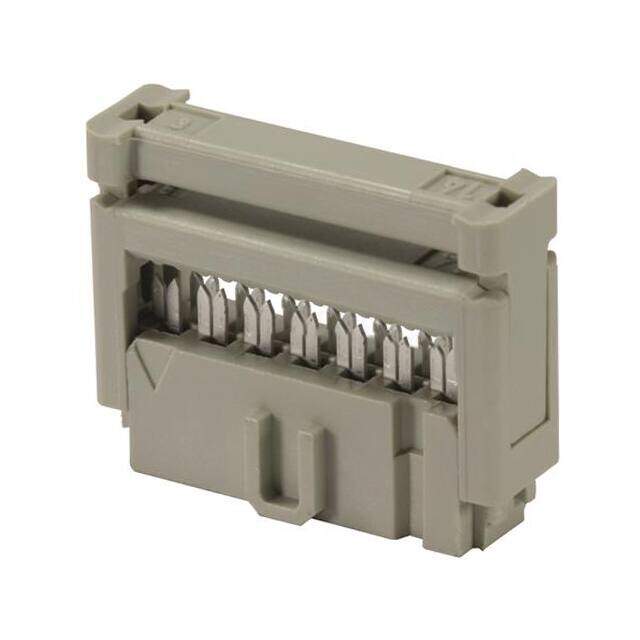

09185105813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings FEMALE CONNECTORS
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.2176
≥1 USD $2.2176
≥10 USD $2.01784
≥100 USD $1.7776
≥500 USD $1.51096
≥1000 USD $1.28876
≥3000 USD $1.15544
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 17.3mm
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Mating Information NO
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Depth 7.2mm
Orientation Right Angle
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key, Strain Relief
Series SEK
Packaging Bulk
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 7 Weeks
