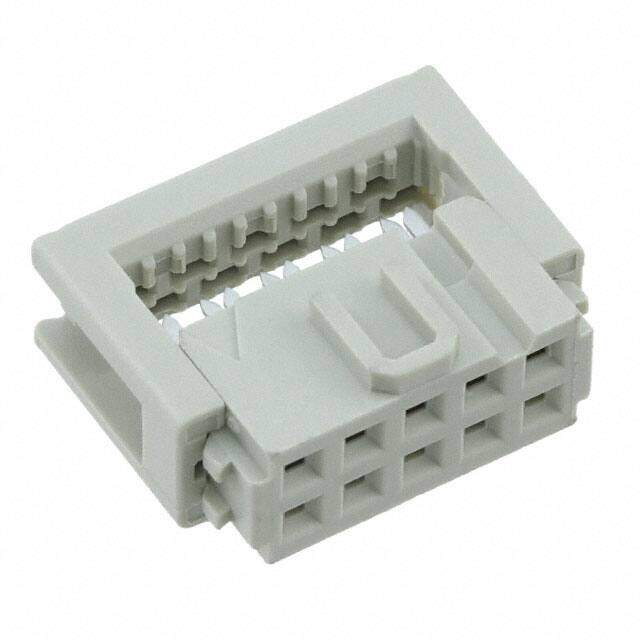

0918510580358U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10P IDC 26-28AWG GOLD
PDF
/
Inventory: 5731
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
Operating Temperature (Min) -55°C
Body Length or Diameter 0.681 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 10
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series SEK
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
