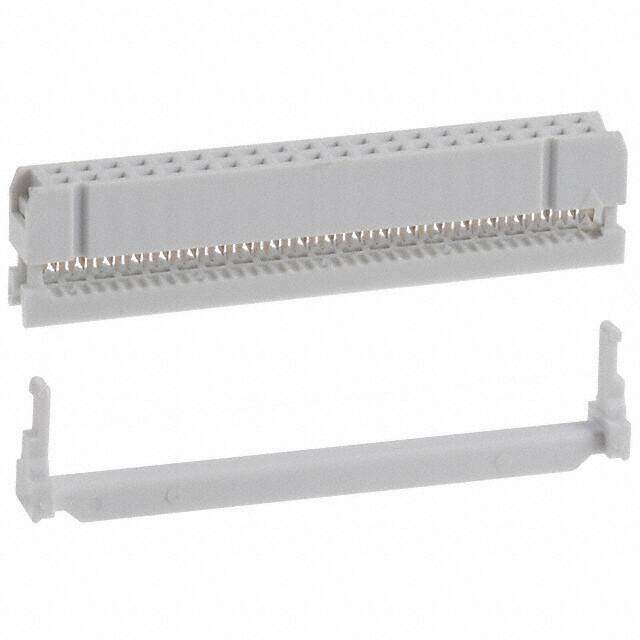

AWP40-8241-T-R image
Favorite
AWP40-8241-T-R image
Favorite

AWP40-8241-T-R

Assmann WSW Components
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN SOCKET IDC 40POS W/STR GOLD
PDF
/
Inventory: 5450
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Plating Thickness FLASH inch
Width 7mm
Length 55.8mm
Height 7mm

Technical

Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 500VAC V
Termination Type IDC
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Housing Color Grey
Operating Temperature (Min) -55°C
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 40
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color Gray
Number of Positions 40
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Feed Through, Strain Relief
Published 2006
Packaging Tray

Physical

Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Brass
