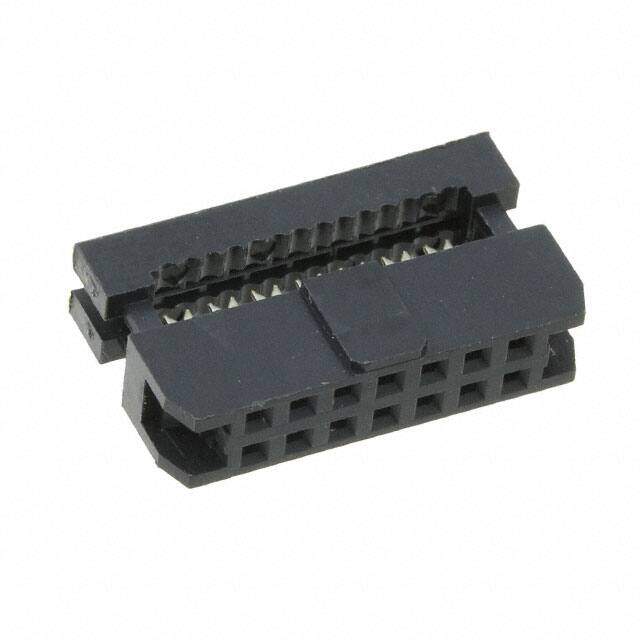

AWP2 14-7240 image
Favorite
AWP2 14-7240 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description ROHS COMPLIANT Free Hanging Rectangular Connector
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.1792
≥1 USD $1.1792
≥10 USD $0.99264
≥100 USD $0.952512
≥500 USD $0.93214
≥1000 USD $0.891625
≥3000 USD $0.810577
Inventory: 118
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness Flash

Technical

Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Dielectric Withstanding Voltage 500VAC V
Polarization Key CENTER
Termination Type IDC
Body/Shell Style PLUG
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Operating Temperature (Min) -55°C
Body Breadth 0.187 inch
Operating Temperature (Max) 105°C
Body Length or Diameter 0.758 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 14
Pitch 0.079 2.00mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Additional Feature ROHS COMPLIANT
Number of Rows 2
Color Black
Number of Positions 14
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Published 2016
Packaging Tray

Physical

Mounting Option 1 LOCKING
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Contact Material PHOSPHOR BRONZE

Supply Chain

Factory Lead Time 23 Weeks
