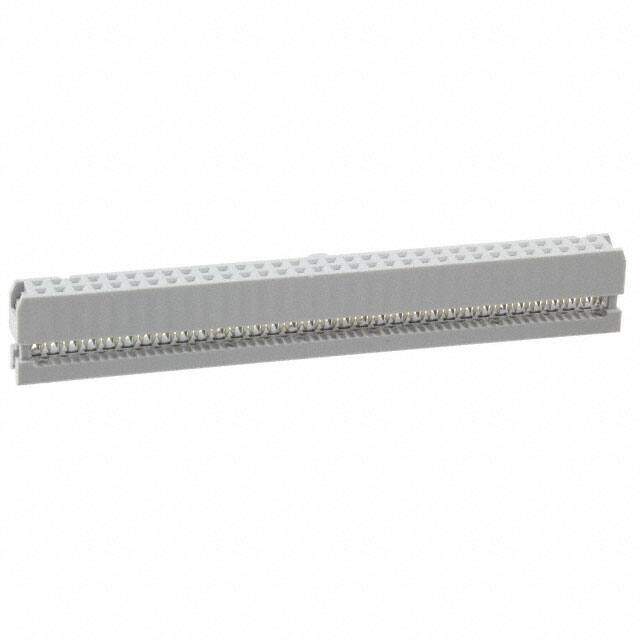

AWP 64-7240-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
W/O STRAIN RELIEF Free Hanging Rectangular Connector
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.57872
≥100 USD $1.511893
≥500 USD $1.478277
≥1000 USD $1.411098
≥3000 USD $1.27666
Inventory: 646
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Free Hanging (In-Line)
Insulation Material THERMOPLASTIC
Technical
Packaging Tray
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket
Number of Positions 64
Color Gray
Number of Rows 2
Additional Feature W/O STRAIN RELIEF
Subcategory Headers and Edge Type Connectors
Contact Type Female Socket
Pitch 0.100 2.54mm
Total Number of Contacts 64
Reference Standard UL,VDE
Contact Finish Gold
Reliability COMMERCIAL
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Rated Current (Signal) 3A
Contact Resistance 30mOhm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Dimensions
Contact Finish Thickness Flash
Compliance
RoHS Status ROHS3 Compliant
