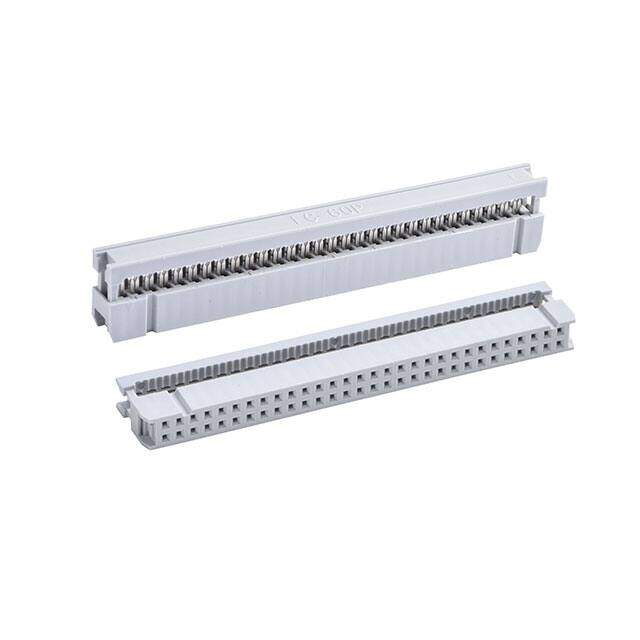

AWP 60-8240-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Rectangular Connector Panel Mount
PDF
/
Inventory: 6298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material BRASS
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Option 1 LOCKING
Technical
Packaging Tray
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket
Number of Positions 60
Color Gray
Number of Rows 2
Subcategory Headers and Edge Type Connectors
Contact Type Female Socket
Pitch 0.100 2.54mm
Total Number of Contacts 60
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 6.185 inch
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Rated Current (Signal) 3A
Insulation Resistance 1000000000Ohm
Row Spacing 0.100 (2.54mm)
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Plating Thickness FLASH inch
Length - Termination 0.098 inch
Compliance
RoHS Status ROHS3 Compliant
