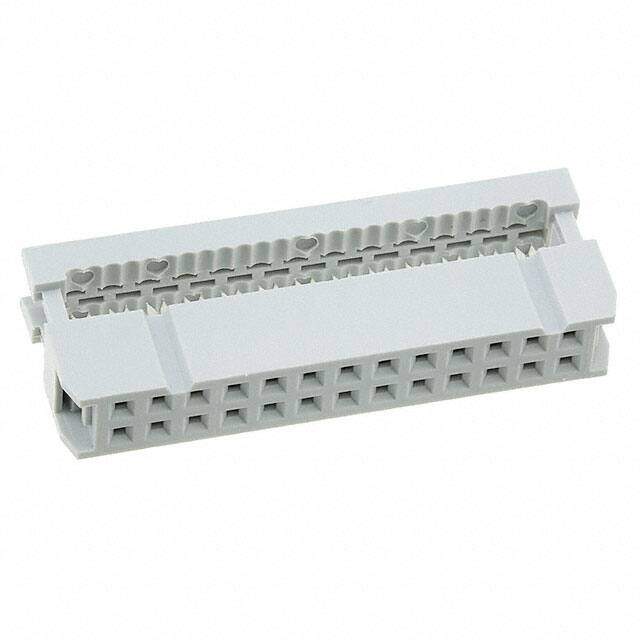

AWP 26-8540-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Rectangular Connector Panel Mount
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.489217
≥1 USD $0.489217
≥10 USD $0.461527
≥100 USD $0.435403
≥500 USD $0.410749
≥1000 USD $0.387505
Inventory: 5993
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material BRASS
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Option 1 LOCKING
Technical
Packaging Tray
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket
Number of Positions 26
Color Gray
Number of Rows 2
Subcategory Headers and Edge Type Connectors
Contact Type Female Socket
Pitch 0.100 2.54mm
Total Number of Contacts 26
Reference Standard UL
Contact Finish Tin
Reliability COMMERCIAL
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Rated Current (Signal) 3A
Insulation Resistance 1000000000Ohm
Row Spacing 0.100 (2.54mm)
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Length - Termination 0.098 inch
Compliance
RoHS Status ROHS3 Compliant
