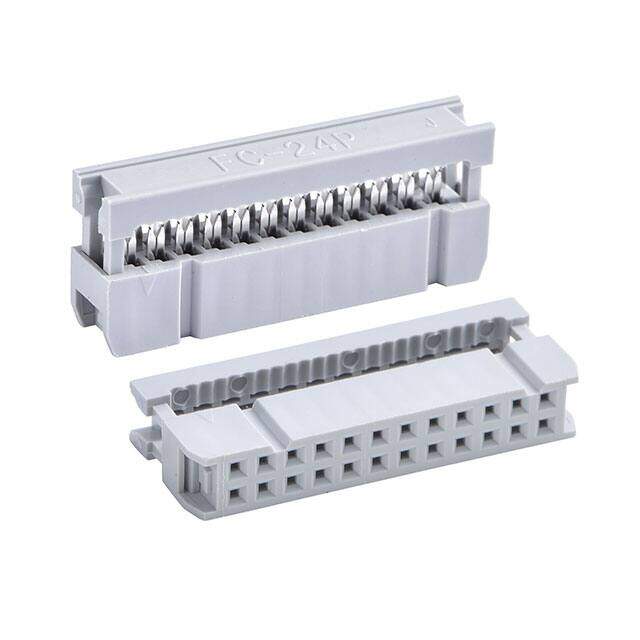

AWP 24-8540-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Free Hanging Rectangular Connector
PDF
/
Inventory: 4139
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.098 inch
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL
Total Number of Contacts 24
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color Gray
Number of Positions 24
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Packaging Tray
Physical
Mounting Option 1 LOCKING
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Contact Material BRASS
Supply Chain
Factory Lead Time 23 Weeks
