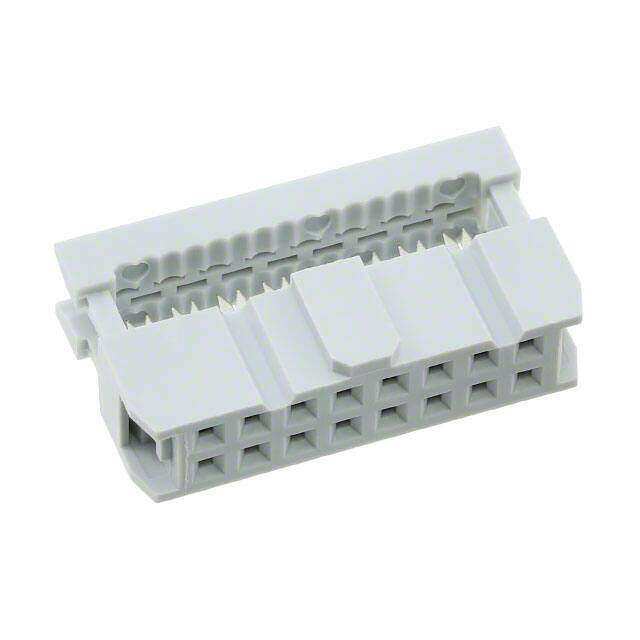

AWP 16-7240-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
W/O STRAIN RELIEF Free Hanging Rectangular Connector
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.45584
≥100 USD $0.41712
≥500 USD $0.39248
≥1000 USD $0.37613
≥3000 USD $0.34342
Inventory: 12260
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness Flash
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Dielectric Withstanding Voltage 1000VAC V
Termination Type IDC
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 16
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature W/O STRAIN RELIEF
Number of Rows 2
Color Gray
Number of Positions 16
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Packaging Tray
Physical
Mounting Option 1 LOCKING
Insulation Material THERMOPLASTIC
Mounting Type Free Hanging (In-Line)
Contact Material BRASS
Supply Chain
Factory Lead Time 23 Weeks
