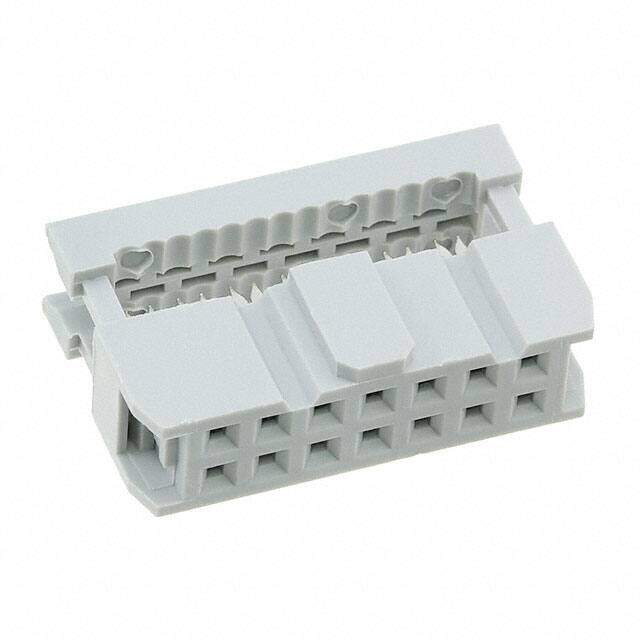

AWP 14-7540-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN SOCKET 14POS IDC TIN
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.900543
≥1 USD $0.900543
≥10 USD $0.849569
≥100 USD $0.801474
≥500 USD $0.756114
≥1000 USD $0.713314
Inventory: 5019
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.098 inch
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 3A
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Body Length or Diameter 0.885 inch
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL
Total Number of Contacts 14
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color Gray
Number of Positions 14
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Packaging Tray
Physical
Mounting Option 1 LOCKING
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Contact Material BRASS
Supply Chain
Factory Lead Time 23 Weeks
