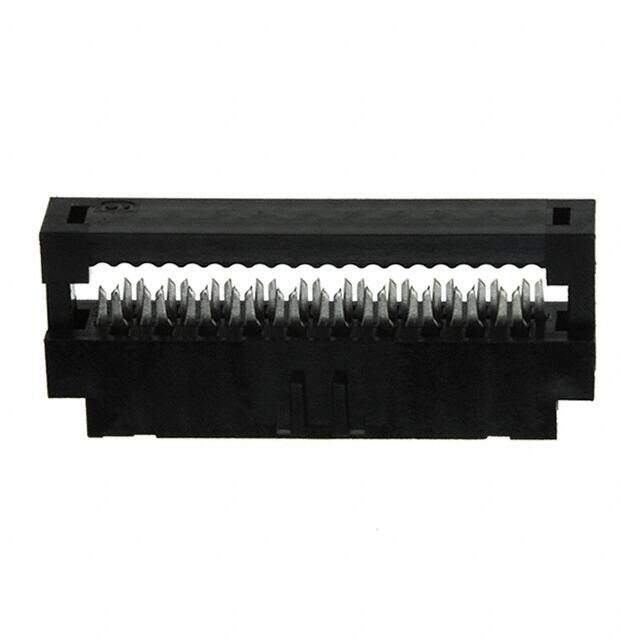

89947-720LF image
Favorite
89947-720LF image
Favorite

89947-720LF

Amphenol ICC (FCI)
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RCPT 20POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $1.86157
≥100 USD $1.742585
≥500 USD $1.66342
≥1000 USD $1.505002
≥3000 USD $1.386176
Inventory: 862
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Width 4.1mm
Length 24.6mm

Technical

Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 650V
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Resistance 30mOhm
Housing Color Black
Number of Contacts 20
Contact Finish Gold
Current Rating 1A
Depth 4.8mm
Orientation Right Angle
Pitch 0.079 2.00mm
Contact Type Female Socket
Fastening Type Friction Lock
Voltage - Rated 650V
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series Minitek? 2.00mm
Packaging Tube

Physical

Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze, Gold, Nickel

Supply Chain

Factory Lead Time 6 Weeks
