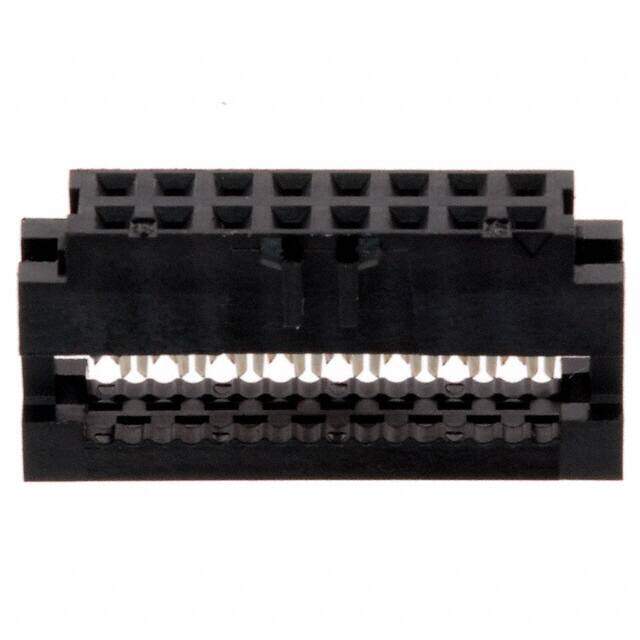

89947-716LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 16POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7336
≥1 USD $1.7336
≥10 USD $1.50832
≥100 USD $1.443825
≥500 USD $1.411775
≥1000 USD $1.347579
≥3000 USD $1.219258
Inventory: 1366
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Tube
Series Minitek? 2.00mm
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Number of Positions 16
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 650V
Fastening Type Friction Lock
Contact Type Female Socket
Pitch 0.079 2.00mm
Orientation Right Angle
Depth 4.8mm
Current Rating 1A
Contact Finish Gold
Number of Contacts 16
Housing Color Black
Contact Resistance 30mOhm
Wire Gauge 28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.079 (2.00mm)
Max Voltage Rating (AC) 650V
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Length 20.6mm
Width 4.1mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
