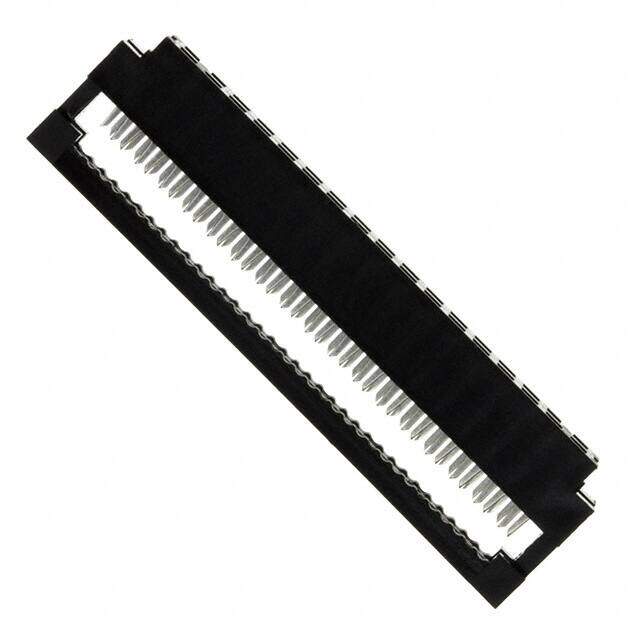

89947-334LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 34POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $3.07
Unit Price: USD $3.0712
≥1 USD $3.0712
≥10 USD $2.78843
≥100 USD $2.64117
≥500 USD $2.57972
≥1000 USD $2.456793
≥3000 USD $2.149717
Inventory: 342
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 38.6mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 650V
Row Spacing 0.079 (2.00mm)
Wire Gauge 28 AWG
Contact Resistance 30mOhm
Housing Color Black
Number of Contacts 34
Contact Finish Gold
Current Rating 1A
Depth 4.8mm
Orientation Right Angle
Pitch 0.079 2.00mm
Contact Type Female Socket
Voltage - Rated 650V
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 34
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series Minitek? 2.00mm
Published 2009
Packaging Tube
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 8 Weeks
