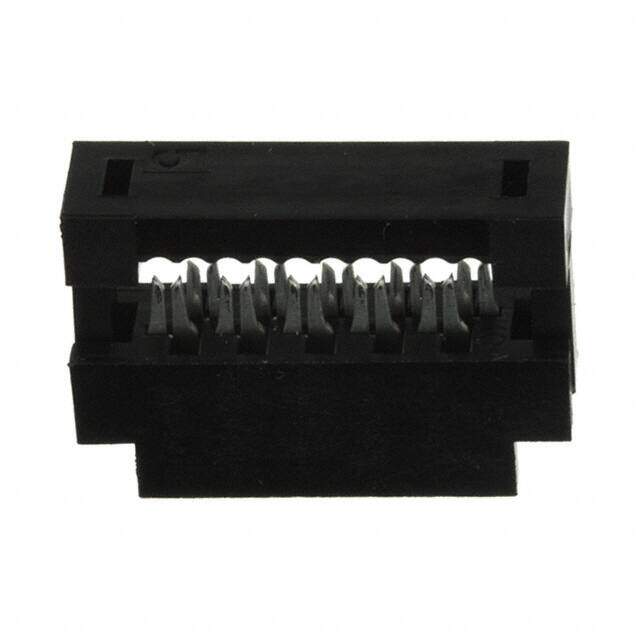

89361-710LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $1.04016
≥100 USD $0.99279
≥500 USD $0.70913
≥1000 USD $0.62876
≥3000 USD $0.614583
Inventory: 1524
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness 8.00μin 0.203μm
Length 14.6mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 650V
Row Spacing 0.079 (2.00mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Resistance 30mOhm
Housing Color Black
Number of Contacts 10
Lead Pitch 2mm
Contact Finish Gold
Current Rating 1A
Depth 4.8mm
Orientation Right Angle
Pitch 0.079 2.00mm
Contact Type Female Socket
Fastening Type Friction Lock
Voltage - Rated 650V
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series Minitek? 2.00mm
Packaging Bulk
Physical
Housing Material Polyester
Material Glass, Polyester, Thermoplastic
Number of Pins 10
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 6 Weeks
