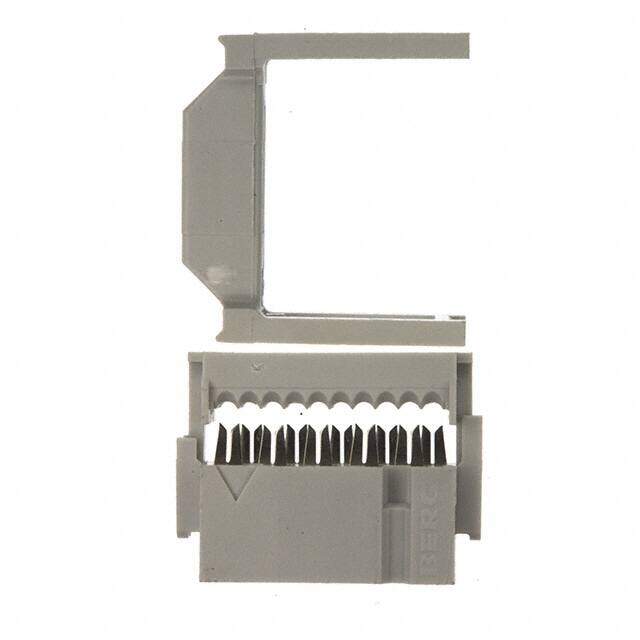

71600-310LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN SOCKET IDC 10POS DL SR 30AU
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.55968
≥100 USD $0.536545
≥500 USD $0.525149
≥1000 USD $0.502286
≥3000 USD $0.456597
Inventory: 3063
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Tube
Series Quickie?
Feature Feed Through, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Gray
Number of Rows 2
Gender Receptacle
Voltage - Rated 1kV
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Depth 7.1mm
Current Rating 1A
Contact Finish Gold
Approval Agency CSA, UL
Lead Pitch 2.54mm
Number of Contacts 10
Contact Gender Female
Housing Color Grey
Contact Resistance 15mOhm
Wire Gauge 28-30 AWG
Insulation Resistance 50GOhm
Row Spacing 0.100 (2.54mm)
Max Voltage Rating (AC) 1kV
Wire/Cable Type Ribbon
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 28 AWG
Cable Termination IDC
Contact Current Rating 1A
Hole Diameter 1 mm
Wire Type Ribbon Cable
Dimensions
Length 17.17mm
Width 6.1mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
